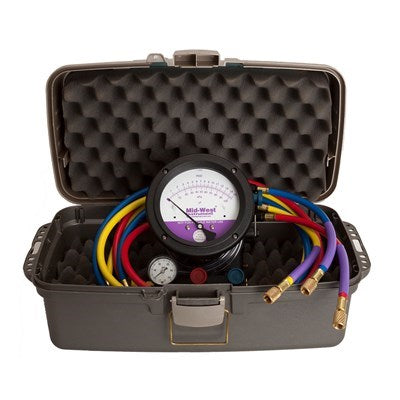

845-5-NP (Mid-West) | Backflow Prevention Assembly Test Kit | Analog Backflow Test Kit

Specificationsgauge Type Diaphragm Differential Pressuredial Size & Range (4 1/2") 0-15 Psid / 0-100 Kpadifferential Pressure Accuracy ± .2 P.S.I.D. (Descending)Working Pressure: 200 Psigbody Material: Glass Reinforced Engineering Thermoplasticwetted Internals: EP Elastomers, Brass And 316 S.S. Metal Partsline Pressure Gauge: 1 1/2" 0-200 Psighoses & End Fittings: Buna-N Jacket And Liner. Schrader 1/4" Brass Coupler -Hose Length: Three (3) Each / 5' Long (Color-Coded)Bleed Tube, One Each / 4' Long Clear Bleed Tube.Adaptor Fittings: (3) Sets of Brass Fittings Provided For Hookup to All Standard Size Test Cocksgauge Weight: 3.6lbs / 1.6kgCase: Durable Molded Plasticsize: 18 1/2"L x 9"W x 9 3/4"HTemperature Limitations: Maximum 150°F/65°CFREEZING Temperatures Must BE Avoidedit is Capable of Performing All Known Test Procedures Including Those Recommended by Asse, Awwa, Csa, Fccc And Hr-Usc And Newwa. | Mid-West Instruments | 845-5-NP
